AI agent orchestration is the control system that turns a goal into a bounded sequence of agent, model, retrieval, tool, and human steps. It decides what work should happen, which capability should perform it, what state is shared, when steps may run in parallel, how results are validated, and where execution must stop or escalate.
The term is often reduced to “one agent calls another.” That is only delegation. Production orchestration also needs task decomposition, contracts, identity, permissions, state transitions, concurrency control, retries, budgets, approvals, traces, and recovery. Without those controls, adding agents increases the number of fluent components while making the overall system harder to predict and repair.
Current platforms expose different orchestration models. Glean supports explicit trigger-and-step flows, branches, and sub-agents whose outputs return to the parent workflow. Microsoft Copilot Studio can plan across configured knowledge, tools, topics, child agents, and connected agents, while also supporting deterministic flows. Google’s Agent Development Kit provides LLM-driven agents plus sequential, parallel, and loop workflow agents. AWS describes a supervisor-and-collaborator model for multi-agent work, while its newer AgentCore guidance emphasizes authenticated runtimes, memory, and monitoring.
The architecture choice should follow the work. A single well-designed agent is usually better than a multi-agent system until specialization, isolation, parallelism, or ownership boundaries create a measurable benefit.
The short answer
A production orchestration layer needs eight contracts:
Task contract: goal, inputs, outputs, constraints, completion test, owner, and deadline.
Capability contract: each agent or tool has a narrow role, typed interface, permissions, cost profile, and failure model.
Routing contract: deterministic rules or model-based selection decide which capability runs and why.
State contract: session, workflow state, durable memory, artifacts, and checkpoints are distinct and versioned.
Execution contract: sequence, parallelism, loop bounds, retries, cancellation, timeouts, and idempotency are explicit.
Authority contract: the orchestrator preserves the invoking identity, delegation scope, approvals, and source permissions.
Evidence contract: outputs carry sources, assumptions, confidence, and provenance across every handoff.
Operations contract: every run is traceable, budgeted, testable, resumable, reversible where possible, and assigned to an owner when it fails.
Start with a deterministic workflow for stable processes. Add model-based routing only where inputs vary. Add sub-agents when a responsibility has a clear boundary and reusable contract. Add parallel execution only when tasks are independent enough to merge safely. The goal is not maximum autonomy; it is the smallest coordination system that completes the work reliably.

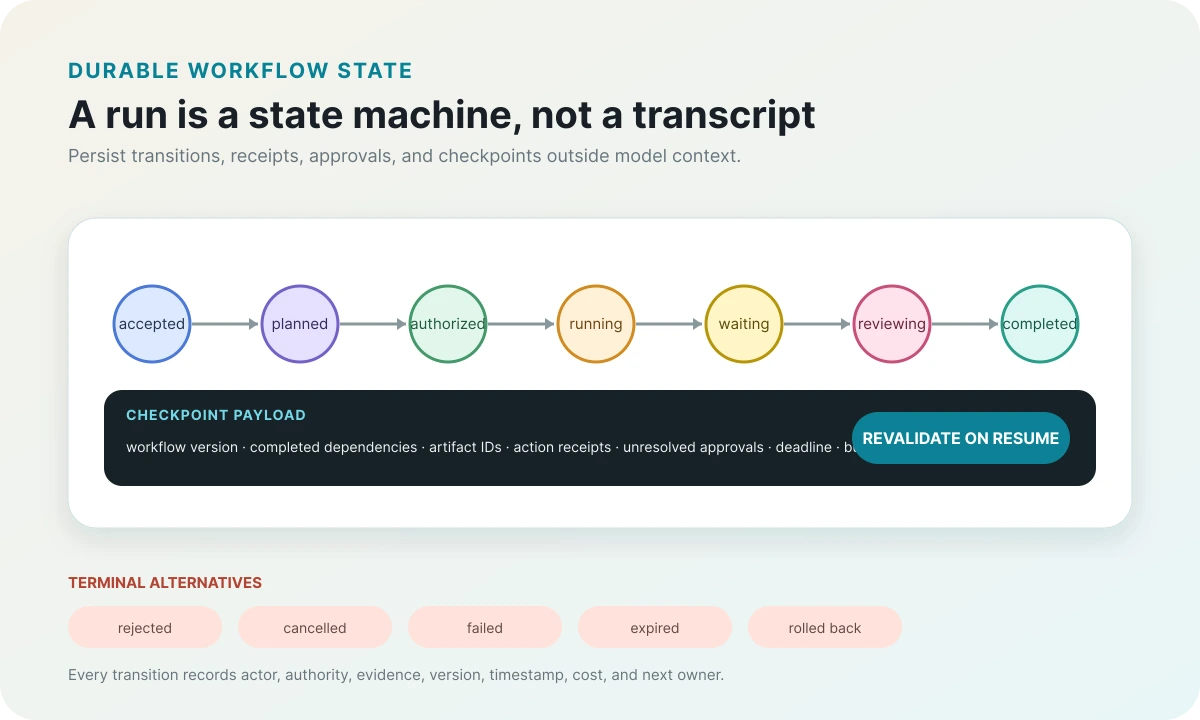

Orchestration is a state machine, not a chat transcript
Treat each run as a durable state machine. A useful lifecycle is:
accepted → planned → authorized → running → waiting → reviewing → committing → completed
Terminal alternatives include rejected, cancelled, failed, expired, and rolled_back.
Each transition should record:
the prior and next state;
actor and delegated authority;
triggering event;
task, agent, prompt, model, tool, and policy versions;
inputs, outputs, and referenced artifacts;
timestamp, deadline, and budget consumption;
evidence and validation result;
retry, approval, or compensation decision.
A transcript is an observation of some interactions. It is not authoritative workflow state. If a process waits two days for approval, changes owner, survives a deployment, or resumes after an API outage, its state cannot live only in model context.
Persist structured fields such as current step, completed dependencies, outstanding approvals, action receipts, retry count, and checkpoint version. Store large evidence and deliverables as durable artifacts with stable IDs. Reconstruct model context from those records rather than treating the last conversation window as the system of record.

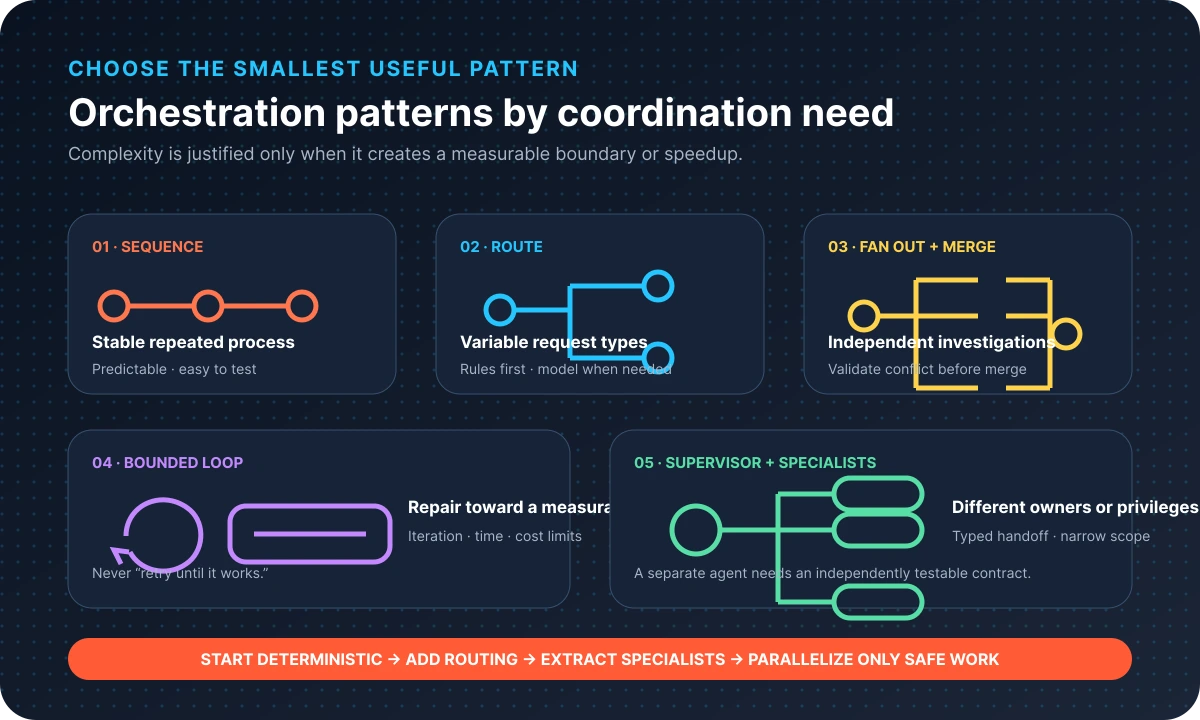

Choose the right orchestration pattern
Deterministic sequence
Run a fixed set of steps in order. Use it for stable processes such as retrieve evidence, generate a draft, validate required sections, request approval, and publish.
Strengths are predictability, simple testing, and clear failure attribution. The weakness is rigidity when inputs require different paths.
Rule-based routing
Route with explicit conditions such as request type, data classification, geography, cost threshold, or account tier. Rules are appropriate when a business policy determines the path.
Keep policy routing outside probabilistic model decisions. A language model may classify intent, but a policy engine should enforce whether the selected route is allowed.
Model-based routing
An orchestrator chooses tools or agents using capability names, descriptions, input schemas, and context. This helps when user requests vary and a fixed decision tree becomes unmanageable.
The router needs a limited candidate set, observable rationale, confidence or fallback behavior, and tests for ambiguous and overlapping capabilities. Microsoft warns that connected-agent hops increase latency and expand testing and governance surface area. AWS likewise recommends clear, minimally overlapping supervisor and collaborator roles.
Parallel fan-out and merge
Run independent work concurrently, then validate and merge results. Examples include searching separate repositories, investigating unrelated hypotheses, or producing independent risk reviews.
Parallelism is unsafe when branches write the same record, depend on an evolving shared assumption, or consume a common limited resource. The merge step must detect conflict, missing branches, inconsistent evidence, and late results.
Loop with bounded repair
Repeat a step until a measurable condition is met: every required field is present, tests pass, evidence coverage crosses a threshold, or an external job reaches a terminal state.
Every loop needs a maximum iteration count, wall-clock deadline, cost budget, progress check, and escape route. “Try again until it works” is not a recovery policy.
Supervisor and specialists
A supervisor decomposes work and delegates to specialist agents with narrow responsibilities. Use it when specialists have different tools, knowledge, security boundaries, evaluation sets, or owners.
Do not create specialists only to give prompts different names. A separate agent is justified when its contract can be independently tested, versioned, authorized, and reused.
Event-driven choreography
Services or agents react to events without a single central planner. This supports loosely coupled processes and independent scaling, but makes end-to-end state and debugging harder.
Use correlation IDs, an event schema, idempotent consumers, replay controls, dead-letter handling, and a process view that reconstructs the complete mission from events.
Capability contracts make delegation reliable
An orchestrator should not delegate by prose alone. Each agent needs a capability manifest containing:
stable capability ID and version;
purpose and non-goals;
accepted input schema and examples;
output schema and completion criteria;
knowledge sources and tool dependencies;
required identity and scopes;
expected latency and cost range;
concurrency and rate limits;
failure categories and retry safety;
evidence and citation requirements;
owner and escalation target.
The parent should pass the minimum necessary context. Include the task, relevant evidence references, constraints, deadline, budget, and expected output—not the entire parent transcript by default.
Glean documents that sub-agent outputs can return to parent memory, with focused response outputs used to avoid flooding the parent with all intermediate content. Microsoft allows child and connected agents to expose inputs and outputs, but notes that citations may not always survive some handoffs. Those details illustrate why evidence transfer must be explicitly tested rather than assumed.
Validate outputs at the boundary. Schema-valid JSON can still be semantically wrong, so combine structural checks with source verification, business constraints, and domain evaluation. A specialist that cannot complete its contract should return a typed failure such as missing_evidence, permission_denied, dependency_unavailable, or needs_human, not a plausible partial answer disguised as success.
State and memory architecture
Separate five stores:
Store | Purpose | Example retention |
|---|---|---|
Session context | immediate interaction continuity | minutes to days |
Workflow state | authoritative execution position and receipts | lifecycle plus audit period |
Durable artifacts | evidence packages, plans, reports, decisions | business retention policy |
User or team memory | approved preferences and reusable facts | until corrected or deleted |
Observability data | traces, metrics, errors, cost | operational and compliance policy |
Do not let every agent write unrestricted long-term memory. Memory writes need source, scope, owner, sensitivity, confidence, expiration, and correction controls. Derived summaries should link back to evidence and be invalidated when that evidence changes.
Use checkpointing before high-cost phases, external side effects, long waits, and human approvals. A checkpoint should capture workflow version, task state, completed action receipts, artifact references, unresolved dependencies, and authorization context. On resume, revalidate identity, permissions, deadlines, and external state rather than blindly continuing.
Identity and delegation across agents
Every handoff should preserve an authority envelope:
invoking human or service identity;
parent agent identity and version;
delegated child capability;
allowed resources, tools, actions, and destinations;
maximum cost, duration, and number of calls;
approval requirements;
expiration and revocation reference;
trace and correlation IDs.
Child agents must not inherit every parent permission automatically. Delegate only the scopes required for the subtask. A research specialist may read approved sources but have no write tools. A publishing specialist may receive an approved artifact and a narrowly scoped publish action but no access to unrelated source repositories.
Prevent confused-deputy failures. A low-privilege requester must not gain a high-privilege result merely because the supervisor can call an administrative child agent. Reauthorize the intended action against the original requester, the delegated agent, the target resource, and current policy at execution time.
For background work, use a dedicated service identity with a bounded mission and auditable policy. Do not silently reuse the builder’s personal credentials. Recheck authorization after long waits or when a run crosses environments.

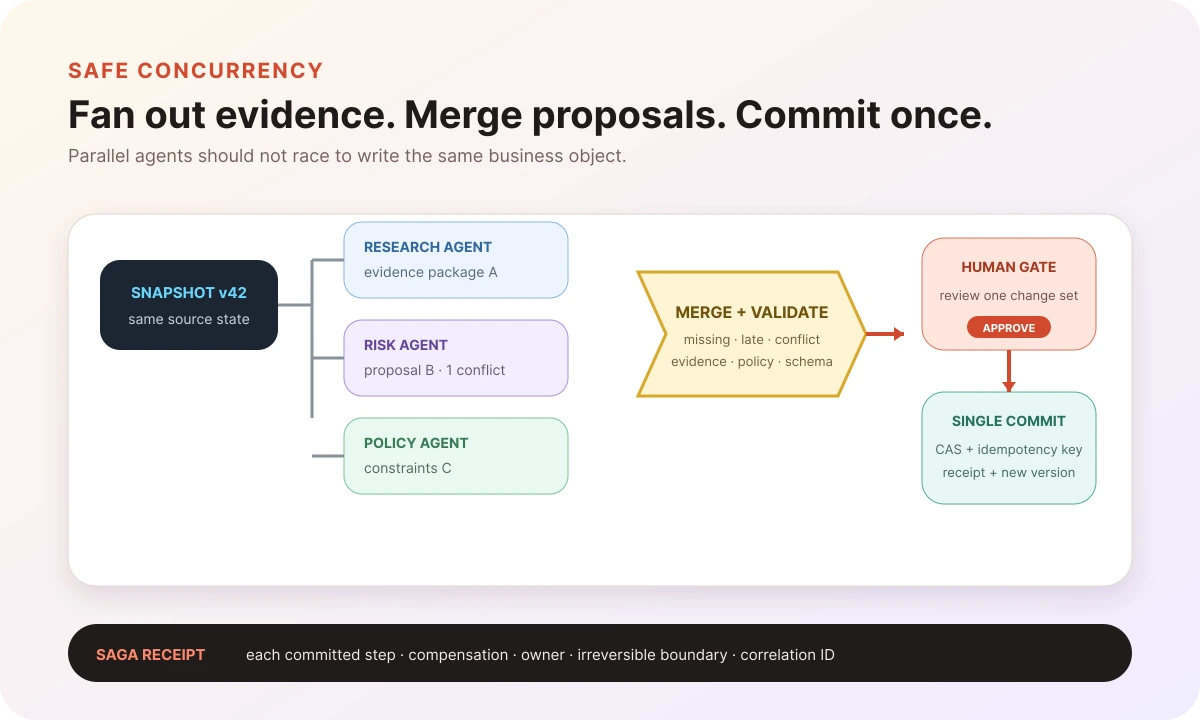

Concurrency, side effects, and consistency
Parallel agents create familiar distributed-systems problems:
duplicate delivery;
out-of-order completion;
stale reads;
competing writes;
partial success;
timeout after a successful downstream action;
lost cancellation;
inconsistent retry behavior.
Use stable task IDs and idempotency keys. For updates, prefer compare-and-set with the version last read. When several branches propose changes to one object, merge proposals before one authorized commit rather than letting every branch write independently.
Apply the saga pattern when a mission spans multiple systems. Record each committed step and its compensating action. Compensation is not always reversal: a sent email cannot be unsent, but the system can issue a correction and open an incident. Label irreversible boundaries and require stronger approval before crossing them.
Cancellation must propagate. A stopped parent should prevent new child work, cancel cancellable operations, mark late results as ignored, and preserve receipts for already committed side effects.
Human control is part of orchestration
Human intervention has several forms:
provide missing or ambiguous input;
approve a proposed change;
choose between conflicting evidence;
accept an exception or additional cost;
take over a failing workflow;
verify completion for a regulated process.
The approval package should show the intended outcome, proposed actions, affected resources, evidence, unresolved uncertainty, executing identity, cost, rollback or compensation, and deadline. The system should resume from the approved checkpoint, not recompute an entirely new proposal after approval.
Define what happens when the reviewer does not respond. Options include expiry, reassignment, escalation, safe partial completion, or cancellation. Never treat timeout as approval.
Use human review to collect structured correction data. Record which claim, plan step, parameter, or permission was changed so the failure can become an evaluation case. A free-form comment without a link to the execution state is hard to learn from.
Error handling and recovery
Classify failures before deciding to retry:
Failure | Default response |
|---|---|
Invalid input | ask or reject; do not retry unchanged |
Permission denied | stop and escalate; do not broaden access |
Rate limit | retry with backoff within deadline |
Transient dependency error | bounded retry with jitter |
Unknown action outcome | reconcile using idempotency key or receipt |
Invalid specialist output | repair once or route to fallback |
Conflicting evidence | preserve both and request a decision |
Budget exceeded | stop at checkpoint and request authority |
Policy violation | block, record, and notify owner |
Use retries at the layer that owns the failure. If a tool client already retries safely, an agent-level retry loop can multiply calls. Record every attempt under one logical task so operators can distinguish retries from separate user requests.
Design fallbacks by capability, not by “ask a larger model.” A routing failure may need a deterministic branch. A retrieval failure may need another index. A permission uncertainty requires abstention. A write failure needs reconciliation. Larger models do not repair unavailable APIs or ambiguous authority.
Observability for orchestrated systems
One trace should connect the trigger to the accepted outcome. Capture:
mission and workflow version;
plan and routing decisions;
parent-child task tree;
state transitions and checkpoints;
evidence and artifact references;
permission and policy decisions;
tool calls, action receipts, and side effects;
retries, waits, cancellations, and approvals;
latency, tokens, calls, and cost by branch;
final validation and outcome.
Use a correlation ID across services and a span for every agent, retrieval, model, tool, and human wait. Trace structured decisions without storing private chain-of-thought. Redact secrets while retaining enough arguments and resource IDs to diagnose the action.
Monitor orchestration-specific measures: routing accuracy, delegation completion, fan-out width, merge conflict rate, loop iterations, orphaned tasks, late results, approval wait, duplicate action prevention, resume success, and cost per accepted outcome.
Evaluation strategy
Test the system at three levels.
Capability tests
Verify each specialist or tool independently against its input/output contract, permissions, evidence requirements, latency, and failure responses.
Coordination tests
Verify routing, state transfer, parallel merge, loops, cancellation, approval, retries, checkpoints, and delegation scope. Include ambiguous capability descriptions and overlapping roles.
Mission tests
Run complete scenarios with real identities, data changes, dependency failures, and expected outcomes. Measure accepted work, not only final text.
Create cases for a missing specialist, disabled child agent, changed schema, stale checkpoint, revoked user, contradictory branches, partial fan-out, timeout after write, duplicate event, late approval, budget exhaustion, and parent cancellation.
Re-run the same suite whenever a model, prompt, tool schema, policy, knowledge source, or specialist version changes. Multi-agent systems amplify dependency drift; release gates must cover the assembled graph, not only individual nodes.
A reference architecture
Intake: validate trigger, identity, mission, deadline, and budget.
Planner/router: choose a versioned workflow and candidate capabilities.
Policy gate: authorize task, sources, tools, delegation, and destinations.
State service: persist task graph, checkpoints, leases, receipts, and approvals.
Execution workers: run agents and deterministic functions with bounded context.
Knowledge layer: retrieve permission-aware evidence with stable source references.
Tool gateway: enforce schemas, credentials, idempotency, rate limits, and confirmation.
Artifact store: hold reviewable inputs, intermediate results, and final deliverables.
Human control: route approvals, exceptions, takeovers, and ownership.
Evaluation and observability: trace runs, score outcomes, attribute failures, and create regression cases.
The orchestrator coordinates; it should not become an all-knowing super-agent. Keep policy, state, tools, and durable evidence in explicit services so behavior remains inspectable and replaceable.
When not to use multiple agents
Stay with one agent or deterministic workflow when:
one instruction and tool set can complete the mission;
specialists would share the same knowledge, permissions, owner, and evaluation set;
tasks are tightly dependent and cannot safely run in parallel;
the merge step would be harder than the original work;
latency or cost is already constrained;
the team cannot trace and operate the additional components.
Multi-agent architecture is valuable when it creates a real boundary: separate domain ownership, least-privilege isolation, reusable capability, independent scaling, different runtime requirements, or measurable parallel speedup.
A 90-day implementation plan
Days 1–30: one mission and explicit state
Choose a bounded workflow. Define the task and capability contracts, state machine, artifacts, identity envelope, tool safety, failure taxonomy, and gold cases. Implement the deterministic path first.
Days 31–60: targeted delegation
Extract one independently valuable specialist. Add typed handoff, evidence transfer, narrow permissions, checkpointing, and trace linkage. Test missing, slow, invalid, and unauthorized specialist behavior.
Days 61–90: concurrency and operations
Add parallelism only for independent tasks. Implement merge validation, cancellation, idempotency, reconciliation, budgets, dashboards, and on-call ownership. Compare outcome, latency, cost, and repair effort against the simpler baseline.
Frequently asked questions
What is AI agent orchestration?
It is the coordination layer that plans, routes, executes, observes, and controls work across agents, models, knowledge, tools, state, and humans.
Is orchestration the same as a multi-agent system?
No. Orchestration can coordinate one agent and several deterministic services. A multi-agent system is one possible architecture within an orchestration layer.
When should agents run in parallel?
When tasks are independent, use compatible snapshots, do not compete for the same side effects, and have a defined merge and cancellation strategy.
Where should workflow state live?
In a durable state service or database, with checkpoints and versioned transitions. Model context and chat history are not sufficient as the system of record.
How should a parent pass context to a sub-agent?
Pass a bounded task, required evidence references, constraints, authority, deadline, budget, and output schema. Avoid copying the full transcript unless it is necessary and permitted.
How do humans fit into orchestration?
Humans provide missing input, approve risk boundaries, resolve conflicts, take over exceptions, and verify outcomes. Their decisions should be explicit state transitions with evidence and authority.
